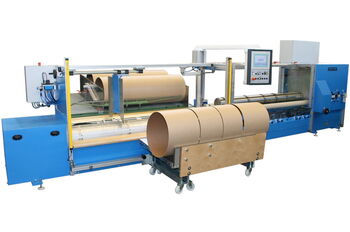

DRS 2200 – thin walled tubes cut in best quality
This full-automatic core cutting machine is used wherever big tubes with thin wall are required. With up to 6 positionable knife holders, different lengths can be cut at once.
More detailed views DRS 2200
Mode of operation
- Full-automatic core cutting system for thin walled tubes in best quality.
- Comprehensive protective measures for safe operation.
- One central cutting mandrel for all diameters including mandrel and changeable steel cutting discs.
- Automatic length detection of the core.
- Cutting length and pieces are programmed on the touch panel.
- 6 manual positionable knife holders incl. circular knives.
- Full automatic feeding system.
- Flexible use due to extremely short set-up times.
- Automation through integration in production lines.
- CE – safety devices.
Technical data
Technical data
| Core diameter | min. inside: approx. 280 mm max. outside: approx. 600 mm |
| Wall thickness | max. approx. 10 mm |
| Core length uncut |
approx. 2200 mm |
| Cutting length | min. approx. 250 mm max. approx. 2150 mm |
| Cutting speed* | approx. 4 tubes / min ø 450 x 3 mm |
| *depending on quality and thickness of the cores |
Datensheet DRS 2200
