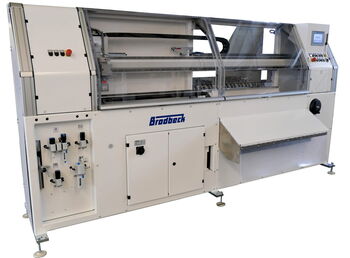

UNI 15-1000A – Flexibility, even with high quantities

This machine was mainly designed for ​​labels companies and for medium to high quantities. By using a central cutting mandrel, different core diameters can be cut with minimal set-up times.
In addition to paper cores, soft plastic tubes can also be cut easily.

Mode of operation

  • Full-automatic corecutting machine for medium quantities.
  • Comprehensive protective measures for safe operation.
  • Minimization of setup times by self-adjustment of the machine to the sleeve diameter. Only the magazine needs to be adjusted.
  • Cutting length and quantity are programmed on a touch panel.
  • Automatic feeding system of the cores.
  • Automatic length detection of the core.
  • Knife drive for wall thickness up to 10 mm.
  • Knife cooling system with integrated lubrication.
  • Extremly low maintenance.
  • Automation through discharging belts with a carton changing system.
  • CE – safety devices.

Technical data

Technical data

Core diameter

min. inside:
approx. 25 or 35 mm

max. outside:
approx. 180 mm

Wall thickness max. approx. 10 mm

Core length

approx. 1035 mm
Cutting length

min. approx. 3 mm
max. approx. 1020 mm

Cutting speed*

approx. 60 cuts / min
ø 76 x 3 mm, 20 mm length


*depending on quality and
thickness of the core

Datasheet UNI 15-1000A
