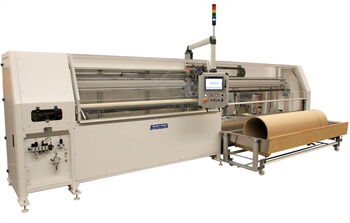

UNI 55-2300A – Extreme flexibility in all sections

Core manufacturers, foil producers or converting companys – the spectrum of this machine extends into almost all sections. Due to the enormous flexibility and adaptability, it can be easily used in all production lines.
In addition to paper cores, soft plastic tubes can also be cut easily.

Mode of operation

  • Full-automatic corecutting machine for medium quantities.
  • Comprehensive protective measures for safe operation.
  • Minimization of setup times by self-adjustment of the machine to the sleeve diameter. Only the magazine needs to be adjusted.
  • Cutting length and quantity are programmed on a touch panel.
  • Automatic feeding system of the cores.
  • Automatic length detection of the core.
  • Knife drive for wall thickness up to 25 mm.
  • Knife cooling system with integrated lubrication.
  • Extremly low maintenance.
  • Also available as semi-automatic core cutter.
  • CE – safety devices.

Technical data

Technical data

Core diameter

min. inside:
approx. 70 mm

max. outside:
approx. 550 mm


Wall thickness max. approx. 25 mm


Core length
uncut

approx. 2390 mm

Cutting length

min. approx. 3 mm
max. approx. 2300 mm


Cutting speed*

approx. 30 cuts / min
ø 400 x 6 mm, 150 mm length



*depending on quality and
thickness of the core

Datasheet UNI 55-2300A
