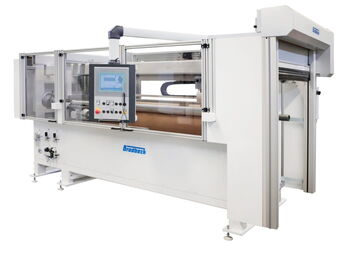

UNI 75-2000 - reliability and flexibility

This system was specially designed for manufacturers of sheet metal. But this system is also used wherever large diameters are required.
By using a central cutting mandrel, different core diameters can be cut without any setup times.
In addition to paper cores, soft plastic tubes can also be cut easily.

Mode of operation

  • Semi-automatic corecutting machine for small and medium quantities.
  • Comprehensive protective measures for safe operation.
  • The core is pushed on a central cutting mandrel for the entire core diameter range.
  • The machine is adjusted by itself, which means there is no need to change the tool set.
  • Cutting length and quantity are programmed on a touch panel.
  • Automatic length detection of the core.
  • Knife-drive for wall thickness up to 30 mm.
  • Extremly low maintenance.
  • CE – safety devices.

Technical data

Technical data

Core diameter

min. inside:
approx. 76 mm

max. outside:
approx. 750 mm


Wall thickness max. approx. 30 mm


Core length
uncut

approx. 2090 mm

Cutting length

min. approx. 3 mm
max. approx. 2000 mm


Cutting speed*

approx. 10 cuts / min
ø 500 x 8 mm, 150 mm length



*depending on quality and
thickness of the core

Datasheet UNI 75-2000
