Contract manufacturing
You have capacity bottlenecks in production or your missing the technilogical equipment?
There are many reasons to use our service of contract manufacturing. Primarily economic production of components is the most important.
Also the missing equipment or capacity bottlenecks are reasons for outsourcing of production.
With our modern CNC milling machines we are your competent partner in the area of contract manufacturing.
We guarantee a professional handling of your assignments with our highest quality. Even with smallest batch sizes we manufacture parts exactly according to your specifications. Our range refers to milled parts up to 6m and welded constructions.
Reliable, fast and uncomplicated. Contact us.
Gallery
Video Simultaneous processing Matec 30HV
Video Simultaneous processing Matec 60HVU
Your contact- production
Philipp Dirr
Telefon: +49 7123 9686-16
fraeszentrum@brodbeck.info
Technical data
Matec 30HV
CNC Control |
Heidenhain iTNC 530 |
Travelling distances X / Y / Z |
3000 x 800 x 950 mm |
Clamping Area Table |
3500 x 835 mm |
Rotary Table |
Ø 600 mm |
Speed range |
15.000 rpm |
Feed Speed |
40.000 mm/min |
A-Axle |
– |
B-Axle |
Continuous, +/- 105 degrees |
Simultaneous milling |
Yes |

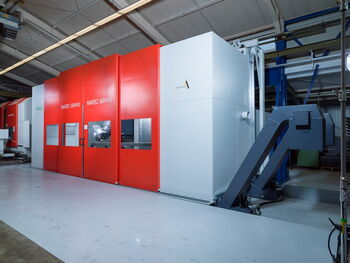

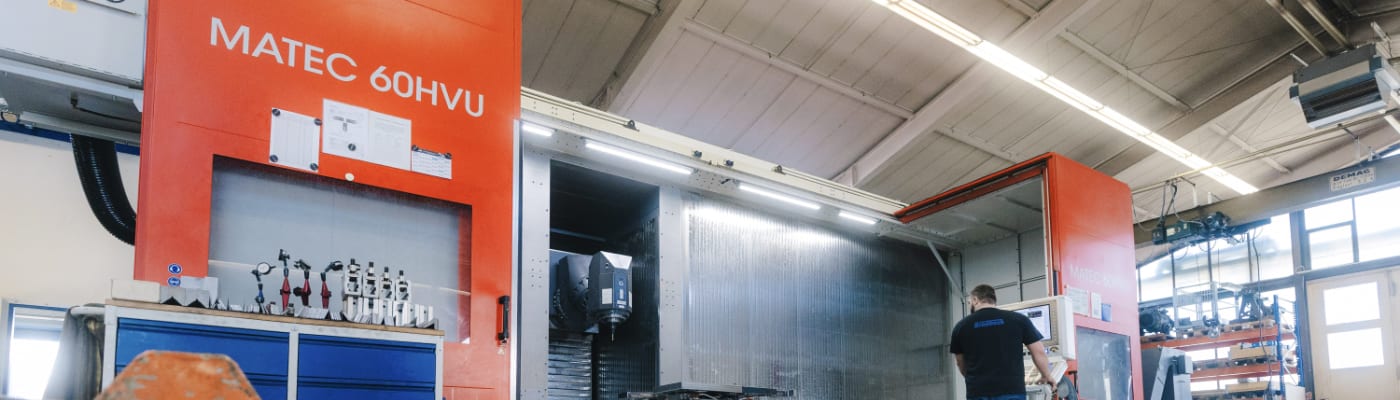

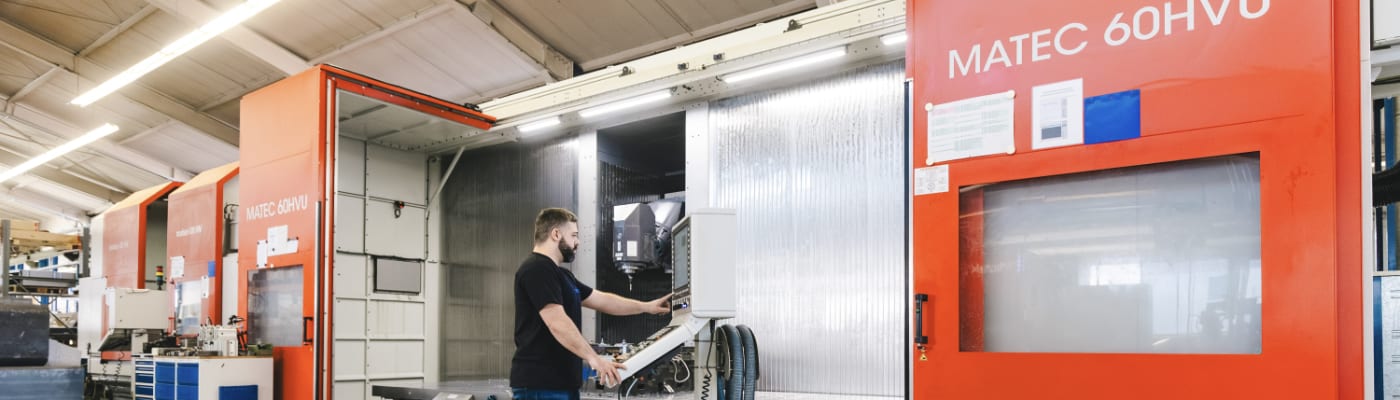

Matec 60HVU
CNC Control |
Heidenhain TNC 640 |
Travelling distances X / Y / Z |
6000 x 1600 x 1500 mm |
Clamping Area Table |
6200 x 1630 mm |
Rotary Table |
Ø 600 mm |
Speed range |
15.000 rpm |
Feed Speed |
30.000 mm/min |
A-Axle |
Continuous, 0 - 180 degrees |
B-Axle |
Continuous, +/- 105 degrees |
Simultaneous milling |
Yes |
