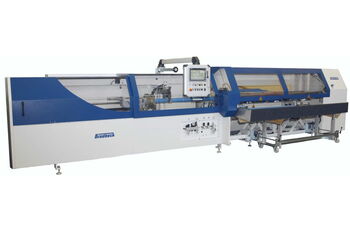

TWIN 4-2500K – Plastic cuts made extremely precisely and of high quality

This machine was specially made for cutting plastic cores. Since cutting machines normally work with circular knives, they are not suitable for brittle plastics such as PS, PP or PVC.
This is now possible with the TWIN 4-2500K - for extremely high-quality cutting sections.

Weitere Detailansichten TWIN 4-2500K

TWIN 4 2500K

Mode of operation

  • Fullautomatic core cutting system for high quantities in best quality.
  • Comprehensive protective measures for safe operation.
  • One toolset each diameter including core adapter and cutting disc.
  • Automatic length detection of the core.
  • Cutting length and pieces are programmed on the touch panel.
  • Full automatic feeding system in different sizes for higher volumes.
  • Flexible use due to extremely short set-up times.
  • Servo driven axis with grooving tool for dividing and chamfering tool for chamfering and smoothing the core.
  • Automation through integration in production lines or through discharging belts with a carton changing system.
  • Optional device for cutting paper cores.
  • CE – safety devices.

Technical data

Technical data

Core diameter

min. inside:
approx. 69 mm

max. outside:
approx. 180 mm

Wall thickness max. approx. 15 mm


Core length
uncut

 approx. 2580 mm

Cutting length

min. approx. 15 mm
max. approx. 2540 mm

Cutting speed*

approx. 10 cuts / min
ø 76 x 8 mm, 50 mm length


*depending on quality and
thickness of the cores

Datasheet TWIN 4–2500K
