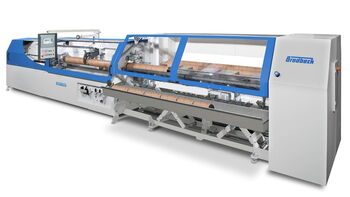

TWIN 4-2500 – for highest demands and flexibility.

This full-automatic core cutting machine is used wherever large quantities of the best quality are required. The modular design means that various levels of automation can be implemented.
In addition to paper cores, soft plastic tubes can also be cut easily.

More detailed views TWIN 4-2500

Mode of operation

Fullautomatic core cutting system for high quantities in best quality.
Comprehensive protective measures for safe operation.
One toolset each diameter including core adapter and cutting disc.
Automatic length detection of the core.
Cutting length and pieces are programmed on the touch panel.
Full automatic feeding system in different sizes for higher volumes.
Flexible use due to extremely short set-up times.
Optional pneumatic or servo-operated knife movement.
Automation through integration in production lines or through discharging belts with a carton changing system.
CE – safety devices

Technical data

Core diameter	min. inside: approx. 19 or 25 / 35 mm max. outside: approx. 230 or 330 mm

Wall thickness	max. approx. 18 or 25 mm

Core length uncut	approx. 2580 mm

Cutting length	min. approx. 2 mm max. approx. 2540 mm

Cutting speed*	P-Version
	approx. 285 cuts / min ø 76 x 3 mm, 12 mm length
	S-Version
	approx. 75 cuts /min ø 152 x 12 mm, 20 mm length
	*depending on quality and thickness of the cores

Datasheet TWIN 4-2500

Datasheet TWIN 4 2500 (530.2 KiB)
