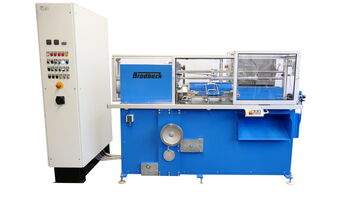

AHT 350 – AHT 500 – for maximum speed with small diameters

This machine was designed for large quantities in the small core area. The cores getting cut by using a knife shaft. Short resetting times due to the simple exchange of knife shaft and cutting mandrel.

Mode of operation

  • Full-automatic corecuttter for high quantities.
  • Comprehensive security facilities.
  • Cutting mandrel hardened for one tube inside diameter.
  • Section lengths by arranging the knives on the knife shaft.
  • Simple change over by removing the cutting mandrel or the knife shaft.
  • Automatic positioning of the core.
  • Continuous adjustable speed.
  • Waste sorting via optional ejector system or sorting drum.
  • Core magazine can be used as a storage or buffer storage
  • CE – safety devices.

Technical data

Technical data

Core diameter

min. inside:
approx. 9 mm

max. outside:
approx. 45 mm

Wall thickness max. approx. 4 mm

Core length

approx. 370 / 530 mm
Cutting length

min. approx. 4 mm
max. approx. 350 / 510 mm

Cutting speed*

approx. 40 strokes / min
ø 25 x 2 mm, 20 mm length


*depending on quality and
thickness of the core

Datasheet AHT 350 - AHT 500
